8W T8 LED Tube Light 6063 Aluminum + Japan Teijin PC cover
Basic Info.
| Model NO.: | LT-T8-8w |
|---|---|
| Surface Temperaturte: | 45degrees |
| Rating Power: | 8watts |
| Life Span: | 50, 000 Hours |
| LED Qty: | 144PCS |
| Material: | 6063 Aluminum + Japan Teijin PC |
| Size: | Length-600mm |
| IP Rate: | IP40 |
| Product Name: | 8W T8 LED Tube Light |
| Export Markets: | Global |
Additional Info.
| Trademark: | LongTech |
|---|---|
| Packing: | 616 X 228 X 208mm |
| Standard: | length-600mm |
| Origin: | Shenzhen, China |
| HS Code: | 9405409000 |
| Production Capacity: | 2000PCS/day |
Product Description

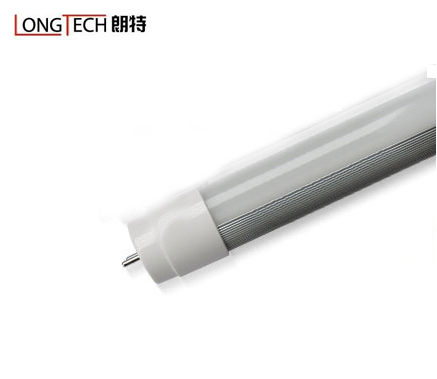

8W T8 LED Tube Light
Product Features:
Rating power: 8watts
LED Qty: 144 PCS
Luminous flux: 600-700lm
Size: Length: 600mm
Physical Parameters:
Overall Size: 15 x 600mm
Housing material: 6063 Aluminum
Base material: Japan Teijin PC
IP Rate: IP40
Life span: 50, 000 hours
Net weight: 0.192kg
Surface temperature: 45degrees
LED weld point temperature: 48degrees
Working temperature: -20 - 45degrees
Storage temperature: -20 - 80degrees
Storage humidity: 20%~ 80%
Working humidity: 10%~90%
Indoor use
Non-dimmable
Optical Parameters:
Output lumens: 600m(warm white), 700lm( neutral white & cool white)
Color temperature: Warm white(3000-3500K), Daylight white(3500-4500K), Cool white(5500-6500K) options
Emitting angle: 120 degrees options
Light source ( LED chips) brand: CREE, Bridgelux, Edison, Epistar, lumenmax
Numbers of LEDs: 144 pieces
Color rendering index: 80+(warm white), 70+(daylight white & cool white)
Illuminance: 240 LX @ 1.0M, 70LX @2.0M, 30LX @3.0M
Luminous efficacy: 80lm/watt
Electrical Parameters:
Working voltage: 85-265Vac/DC
Frequency: 50-60Hz
Rated power: 5watts
Protection: Input over current protection, Output short circuit protection, Output over current protection
Pass EMI & LVD testing
Power factor: 0.95
Constant current LED driver
Packaging Details:
Volume: 20 units per carton
Gross weight: 8.26kg
Carton measurement: 616 x 228 x 208mm
Type of packaging: Neutral packaging or as client requested
It can be wide input voltage without flicker and with high luminous efficacy.
Saving 70% electricity than traditional lamp, lifespan is up to 50, 000 hours, 10 times longer than the traditional lamp, 3 years warranty is offered.
Easy installation: Remove starter or electronic ballast, then install LED tube to fixture directly and click it into position.
Remarks:
Warranty: 3 Years.
MOQ: 100 PCS.
Applicable Scope:
Mall, Hospital, Home, School, Office, etc
Obtain Certification:
CE, FCC, RoHS
Solutions:
Provide OEM service and customize service
Part No. |
Qty per Carton |
Measurement |
Gross weight |
20’ |
40GP |
40HQ |
LT-T806-14410B |
144 |
L: 616*W: 228*H: 208 |
8.26 |
12300 |
27000 |
31500 |
LT-T806-14410B |
144 |
L: 616*W: 228*H: 208 |
8.26 |
6500 |
13500 |
15750 |
