10W T8 LED Tube Light 6063 Aluminum + Japan Teijin PC lens
Basic Info.
| Model NO.: | LT-T8-10W |
|---|---|
| Working Temperaturte: | -20-+45 degree celsius |
| Rating Power: | 10watts |
| Life Span: | 50, 000 Hours |
| LED Qty: | 144PCS |
| Material: | 6063 Aluminum +PC |
| Size: | 15 X 600mm |
| IP Rate: | IP40 |
| Product Name: | 10W T8 LED Tube Light |
Additional Info.
| Trademark: | LongTech |
|---|---|
| Packing: | L: 616*W: 228*H: 208 |
| Standard: | 15 x 600mm |
| Origin: | Shenzhen, China |
| HS Code: | 9405409000 |
Product Description

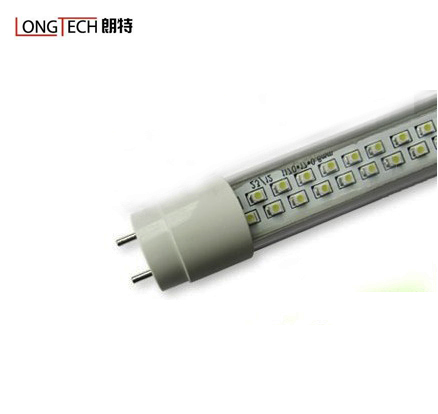

10W T8 LED Tube Light
LED Tube Light Features:
Rating power: 10watts
LED Qty: 144 PCS
Luminous flux: 650-750lm
Size: Length: 600mm
LED Tube Light Physical Parameters:
Overall Size: 15 x 600mm
Housing material: 6063 Aluminum
Base material: Japan Teijin PC
IP Rate: IP40
Life span: 50, 000 hours
Net weight: 0.192kg
Surface temperaturte: 45degrees
LED weld point temperature: 48degrees
Working temperature: -20 - 45 degrees
Storage temperature: -20 - 80 degrees
Storage humidity: 20%~ 80%
Working humidity: 10%~90%
Indoor use
Non-dimmable
LED Tube Light Optical Parameters:
Output lumens: 650m(warm white), 750lm( neutral white & cool white)
Color temperature: Warm white(3000-3500K), Daylight white(3500-4500K), Cool white(5500-6500K) options
Emitting angle: 120 degrees options
Light source ( LED chips) brand: CREE, Bridgelux, Edison, Epistar, lumenmax
Numbers of LEDs: 144 pieces
Color rendering index: 80+(warm white), 70+(daylight white & cool white)
Illuminance: 335 LX @ 1.0M, 85LX @2.0M, 40 LX @3.0M
Luminous efficacy: 80lm/watt
LED Tube Light Electrical Parameters:
Working voltage: 85-264Vac/DC
Frequency: 50-60Hz
Rated power: 10watts
Protection: Input over current protection, Output short circuit protection, Output over current protection
Pass EMI & LVD testing
Power factor: 0.9
Constant current LED driver
| Part No. | Qty per Carton | Measurement | Gross weight | 20 GP | 40GP | 40HQ |
| LT-T806-14410A | 144 | L: 616*W: 228*H: 208 | 8.26 | 12300 | 27000 | 31500 |
| LT-T806-14410A | 144 | L:1235*W: 245*H: 213 | 8.26 | 6500 | 13500 | 15750 |
